Description

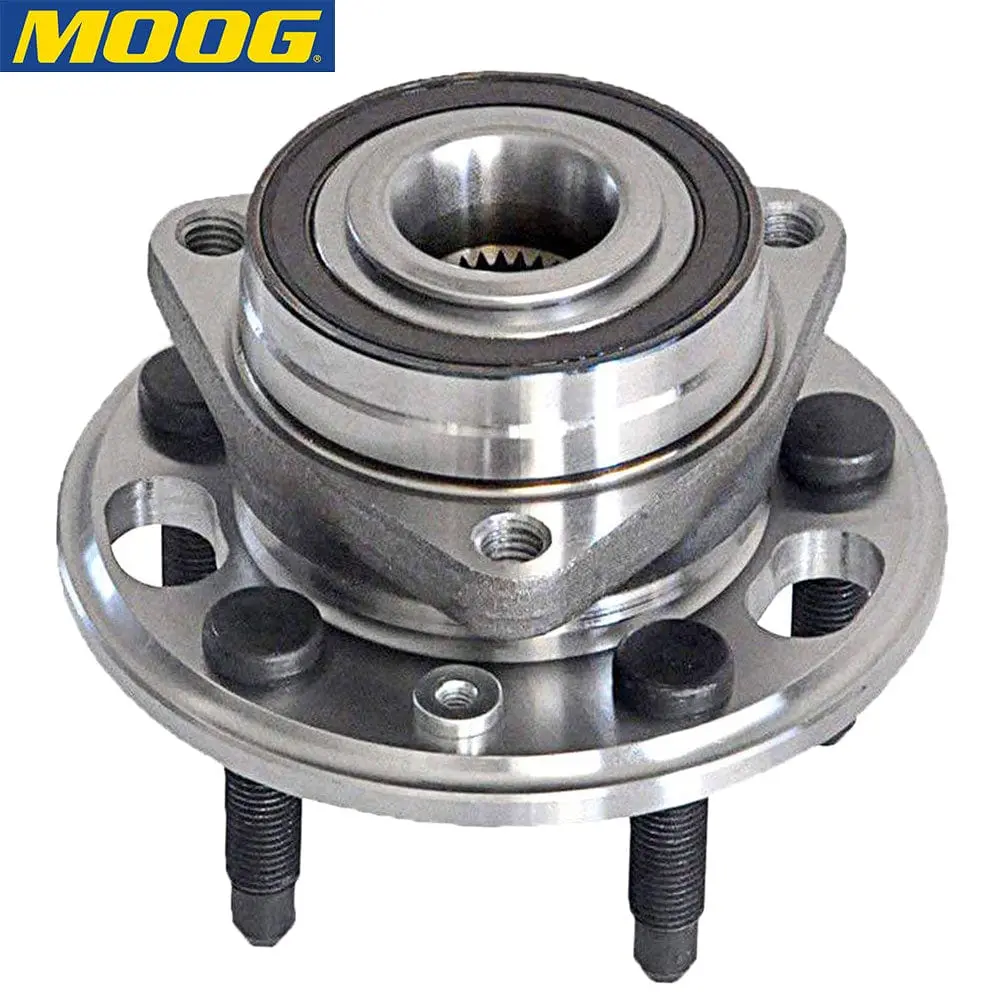

Moog 513288 Wheel Bearing and Hub Assembly (Front / Rear — See Fitment)
Premium, sealed hub and bearing unit engineered for quiet operation, proper ABS performance, and long service life on compatible GM, Cadillac, Buick, Saab applications.
5-lug | Front or Rear (varies by model)
Specifications
| Bolt Circle Diameter (mm) | 120.000 |
| Brake Pilot Diameter (mm) | 67.300 |
| Flange Bolt Hole Quantity | 3 |
| Flange Diameter (mm) | 156.900 |
| Flange Offset (mm) | 42.000 |
| Hub Pilot Diameter (mm) | 91.200 |
| Spline Quantity | 30 |
| Wheel Pilot Diameter (mm) | 66.800 |
| Wheel Stud Quantity | 5 |
Vehicle Fitment
| Make | Model | Year(s) | Position | Notes |
| Buick | Allure | 2010 | Rear | — |
| Buick | LaCrosse | 2010–2016 | Front & Rear | All models |
| Buick | Regal | 2011–2017 | Front & Rear | All models |
| Cadillac | CTS | 2014–2016 | Front | AWD only |
| Cadillac | XTS | 2013–2017 | Front & Rear | No HD brakes |
| Chevrolet | Equinox | 2010–2017 | Front | All models |
| Chevrolet | Impala | 2014–2020 | Front & Rear | All models |
| Chevrolet | Malibu | 2013–2015 | Front & Rear | All models |
| GMC | Terrain | 2010–2017 | Front | All models |
| Saab | 9-5 | 2010–2011 | Front & Rear | All models |
What’s in the Box
- 1 × Wheel Bearing and Hub Assembly (Moog 513288)
Installation Notes
- Verify position (front or rear) for your exact vehicle trim before ordering.
- Professional installation recommended; torque fasteners to factory specs.
- After installation, perform a road test and re-check torque.
10-Year Warranty | Ships Next Business Day | Delivery 3–7 Business Days
