DSE6020 MKII AMF Controller – Intelligent Generator Automation Module for Reliable Power Transfer

Description

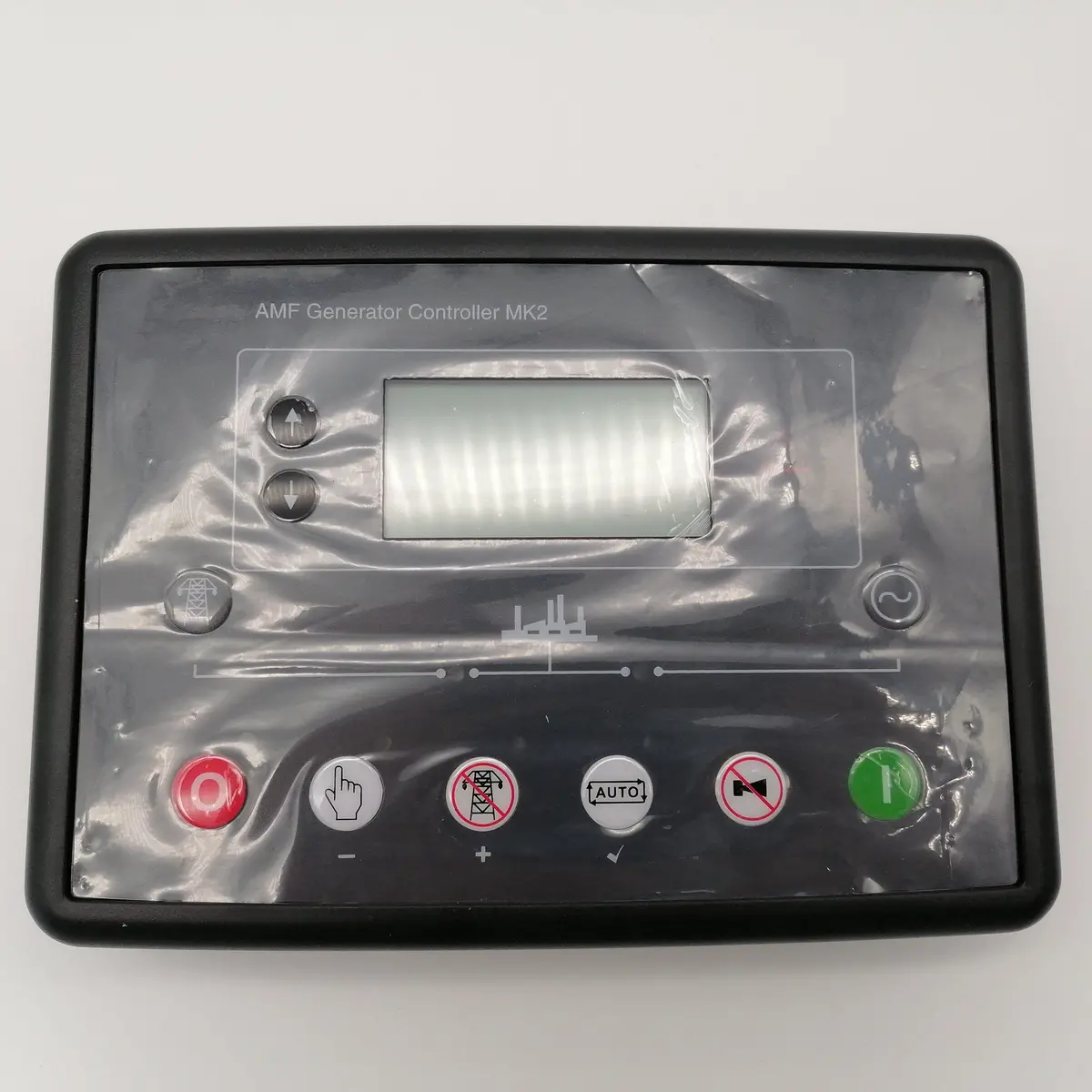

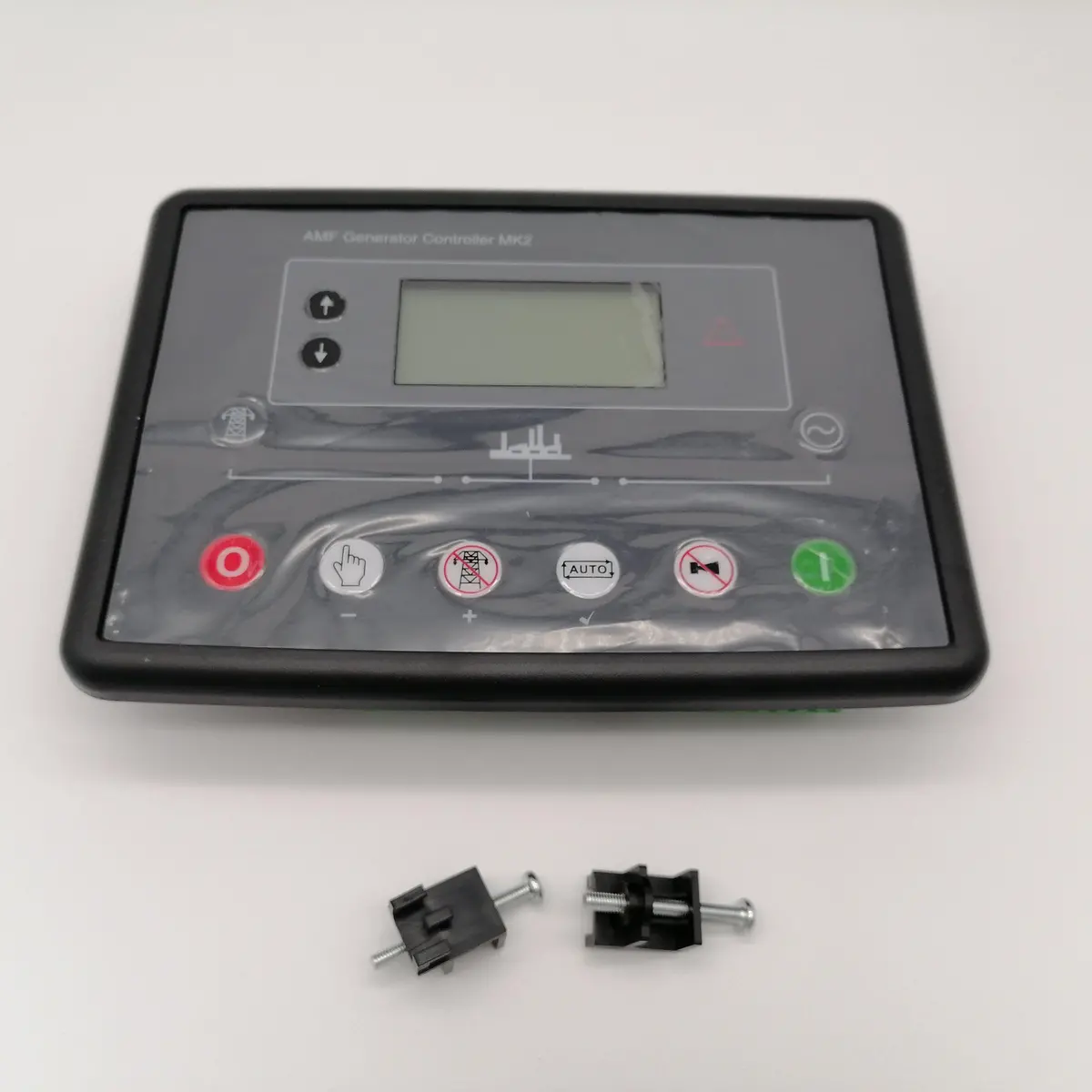

DSE6020 MKII AMF Module Controller Fits for Generator
Free Shipping

Application:
Generator
Interchange part number:
DSE6020
Description:
Module Controller
Condition:New,Replacement

Product Details:DSE 6020 AMF module,The control system is an integral part of the unit and also the heart of the unit. The application of the intelligent control system in the unit is helpful to improving the quality of the electric energy and the automation level of the diesel unit.
1: Standard screen: Namely manual control screen. You only need to connect the start battery to control the unit locally.2: Self-start control screen: The unit can realize both local manual control and remote control (by the external signal line). You need to connect the signal control line to this screen correctly3: “Three-remote” communication fully automatic control screen: On the basis of the “self-start control screen” function, it also has the communication mode4: It is used in the automation and monitoring system of single unit. It has many functions like automatic startup/shutdown, data measurement, alarm protection and “three-remote”. The controller has large LCD display and Chinese/English interface, realizing simple operation and reliable running.Continuous Voltage Rating8 V to 35 V Continuous
Maximum Operating Current100 mA at 12 V, 105 mA at 24 V
Maximum standby current60 mA at 12 V, 55 mA at 24 V
Frequency range3.5 Hz to 75 Hz
Configurable as:Negative switching digital input0 Ω to 480 ΩAnalogue input DConfigurable as:Negative switching digital input0 V to 10 V4 mA to 20 mA0 Ω to 480 ΩAuxiliary Outputs C, D, E & F2 A DC at supply voltage
