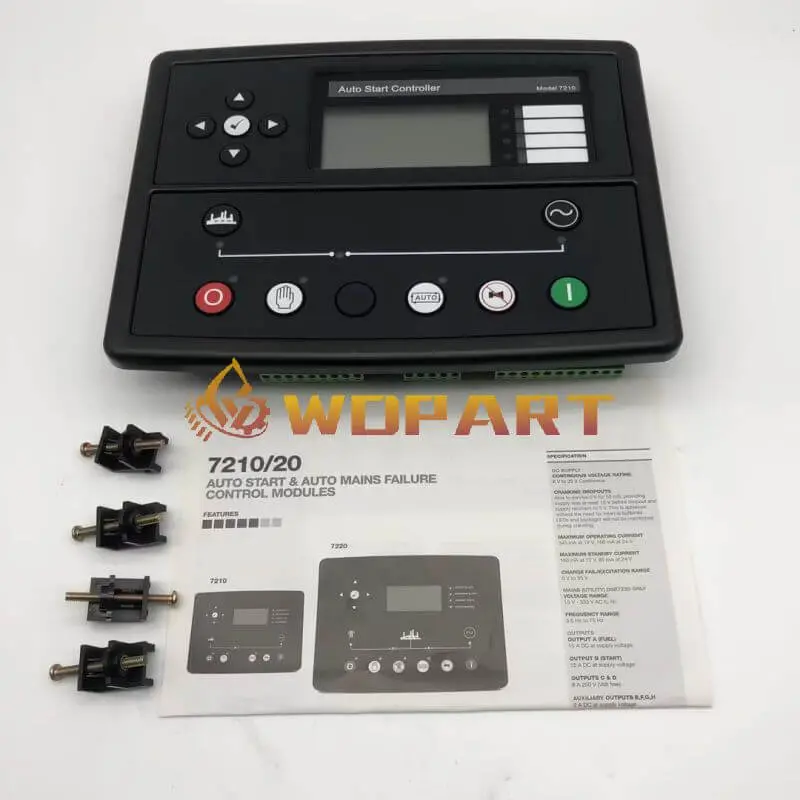

DSE7210 Deep Sea Electronic Generator Control Panel with LCD Display

Description

DSE7210 Electronic Control Module Panel For Deepsea
Free ShippingInterchange part number:DSE7210

Description:
1.Large back-lit text LCD display.
2.CAN and magnetic pick-up sensing.
3.3-phase generator sensing.
4.Configurable inputs/outputs (6/8).
5.Power monitoring (kW h, kV Ar, kV Ah, kV Ar h)

Specification:
Material: Plastic
Model: DSE7210
Output:
Power supply voltage output A (fuel) : 15 A DC
Power supply voltage output B (start) : 15 A DC
Output C&D: 8 A 250 V (no voltage)
Auxiliary output under the power supply voltage: E, F, G, H 2 A direct current
Generator:
Voltage range: 15 V-333 V AC (L-N)
Frequency range: 3.5 Hz to 75 Hz
Magnetic pickup:
Voltage range: +/- 0.5V to 70V
Frequency range: 10000 Hz (maximum)

Package List:
1 x Generator Controller    1 x Black Gasket        4 x Set Screws
Condition: New
