Application:
Kutai
Interchange part number:
EA05A
Description:

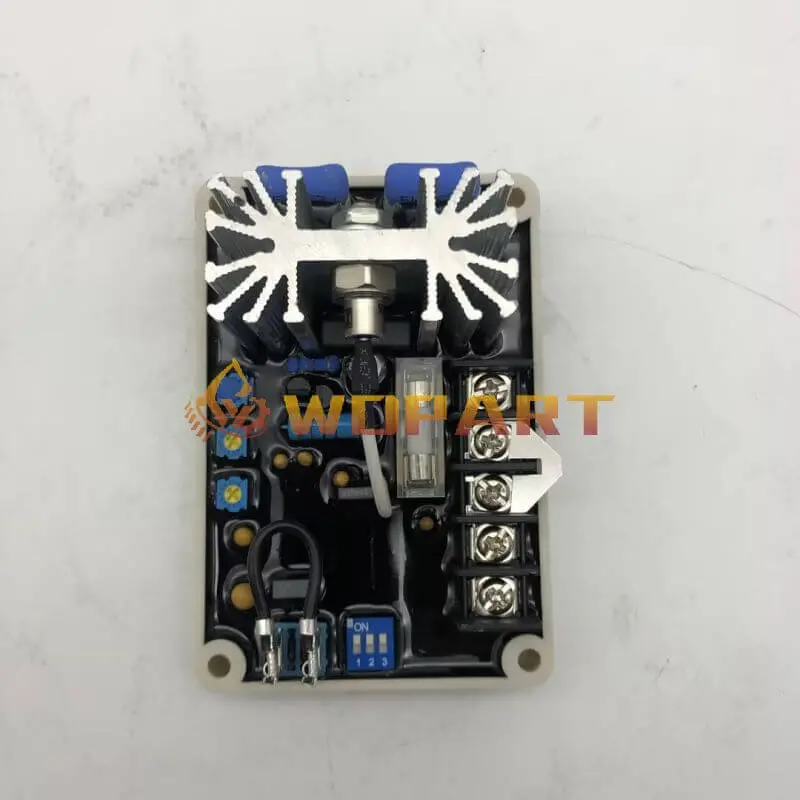

Automatic Voltage Regulator Controller
Condition:New,Replacement
Sensing Input Voltage: 220/380/440 VAC, 1 Phase 2 Wire DIP Switch Selectable
Frequency: 50/60 Hz, DIP Swtich Selectable
Output Voltage: Max 63V dc at 220V ac input, Max 90V dc at 240V ac input
Current: Continuous 5 A, Intermittent 7 A for 10 secs
Resistance: MIN. 15 ohm, MAX. 100 ohm
Voltage Regulation: <±0.5% ( with 4% Engine Governong )
Voltage Build-up: Residual Voltage at AVR terminal > 5VAC
Thermal Drift: 0.03% per deg. C change in AVR ambient
External Voltage Adjustment: 7% with 1 k ohm 1 watt trimmer
EMI Suppression: Internal electromagnetic interference filtering
Unit Power Dissipation: MAX. 8 Watt
Under Frequency Protection (Factory Setting):
60 Hz system presets knee point at 55Hz
50 Hz system presets knee point at 45Hz
Soft Start Ramp Time: 3 sec.
