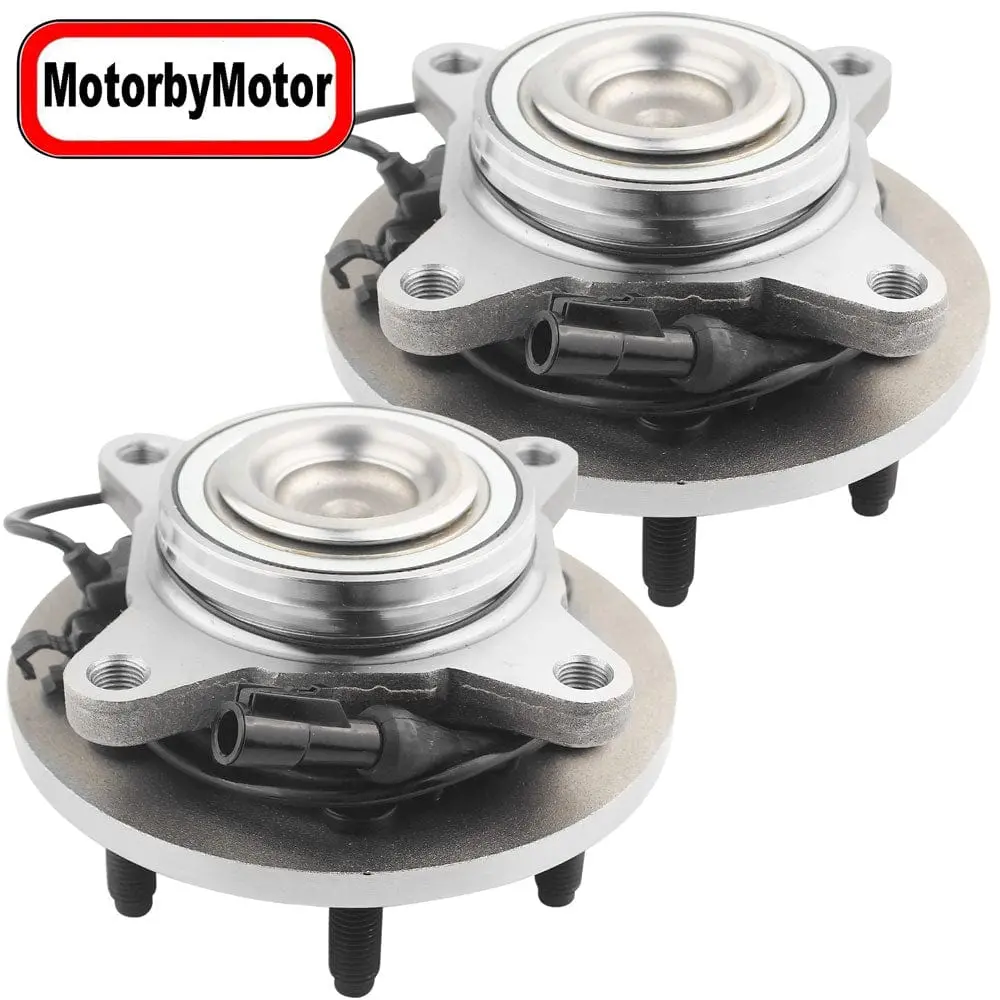

Front Wheel Hub and Bearing Assembly for Ford Expedition & Lincoln Navigator – 2WD/RWD, ABS-Compatible, 6-Lug Design, Part #515042 (2-Pack)

Description

Front Wheel Bearing Fit 2002-2006 Lincoln Navigator, Ford Expedition Wheel Hub 2WD RWD w/ABS, 6 Lugs-515042 (2 Pack)

Fit:
2002-2006 Ford Expedition (Front, 2WD)
2002-2006 Lincoln Navigator (Front, 2WD)

Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 48.62 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 6
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 54
Lug Bolt Thread Size: M14-2.0
Total Hub Diameter (in): 7.204 Inch
Hub Centerbore Diameter (in): 5.314 Inch
Total Hub Height (in): 4.610 Inch
Flange Diameter (in): 7.204 Inch
Flange Offset (in): 1.795 Inch
Flange Shape: Square
Flange Bolt Size (in): 1.830 Inch
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 3.543 Inch
