Description
Did you know….
ALL of the PDP Dual Battery kits
Will connect to these solar blankets

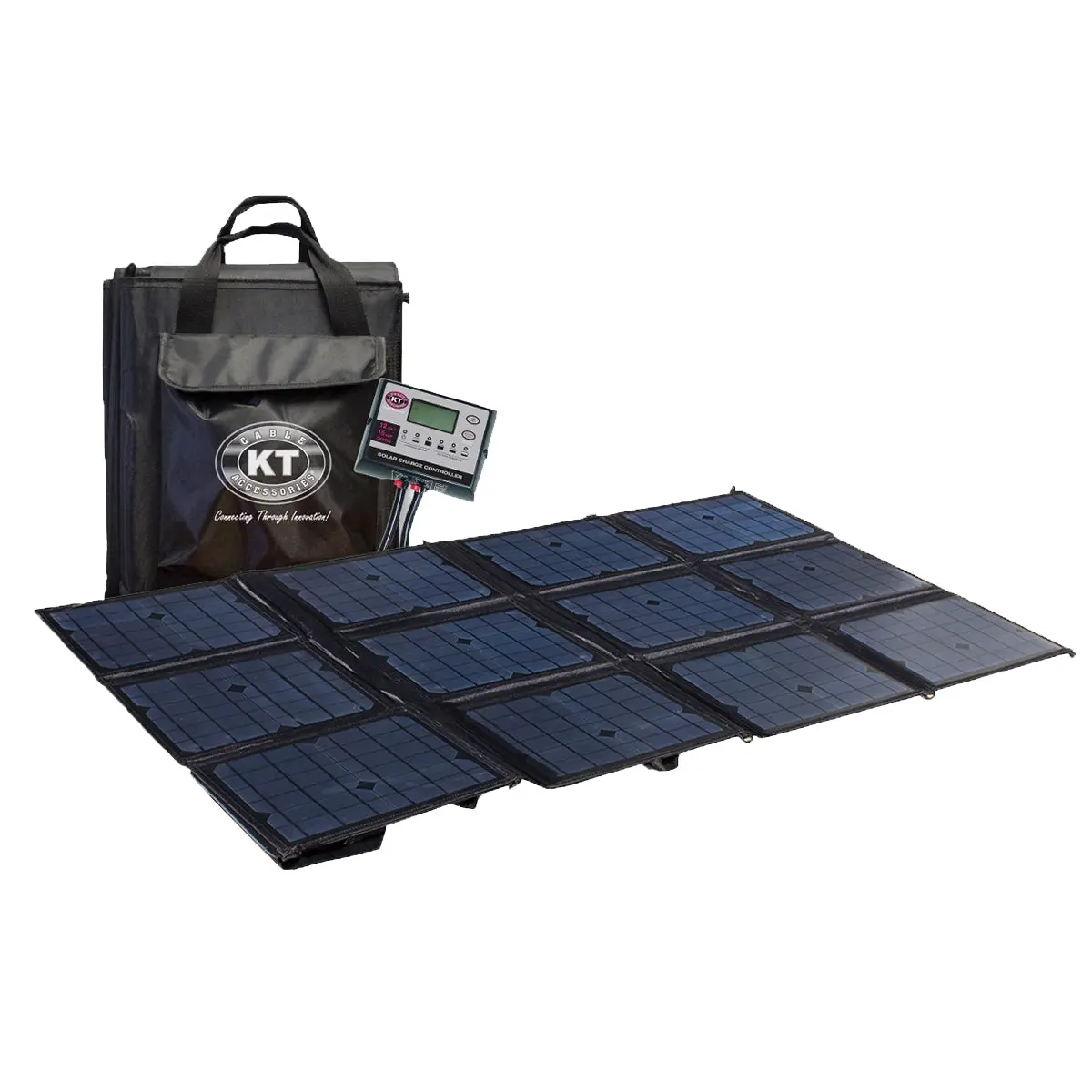

The innovative & powerful KT 300 Watt Portable Solar Blanket is ideal for 4WD, Camping & Recreational Outdoor Activities. Included with this kit, is a PWM 20Amp Solar Charge Regulator (IP65 Rated), Suitable for charging WET, Calcium, LifeP04 (Lithium Iron Phosphate), LTO (Lithium Titanium Oxide), Gel & AGM Batteries. Power Leads and Accessories included for easy connection to batteries & devices.
Designed as a convenient, light-weight, space-saving solar solution, the KT 300 Watt Solar Blanket features 3 x 5 (15 total) Monocrystalline Solar Cells which fold neatly into an easily transportable 390mm x 380mm x 140mm carry bag, and weighing in at a light 8.85Kg.
Manufactured with a scratch-resistant matte coating for extra durability in Australian off-Road conditions, The KT 300 Watt Solar Blanket features an innovative anti-theft tab which can be locked into the door of a vehicle, for peace of mind. The easy mounting loops allow the blanket to be mounted in various positions for ultimate solar harvest.
Dimensions & Weight:
- Dimensions (Length Unfolded): 1970mm
- Dimensions (Height Unfolded): 1140mm
- Dimensions (Depth Unfolded): 5mm
- Dimensions (Length folded): 390mm
- Dimensions (Height folded): 380mm
- Dimensions (Depth folded): 140mm
- Panel Weight: 8.85Kg
Features:
- One-Piece Easy-Fold Weather-Proof 300 Watt Solar Blanket
- Small, compact design for easy transportation and storage
- 50A Heavy Duty Connector wired to Solar Blanket for easy power connection
- 20A, 12V PWM Solar Charge Controller (IP65)
- 4.8M Power Lead with easy 50A connections to power
- 55cm Power Lead with Positive/Negative battery clamps & 20A in-line fuse
- Features securing tab to fix solar blanket to vehicle
- Blanket features loops along the edge to allow mounting in various positions
- Five accreditation certificates
Warranty & Guarantees:
- 12 Month Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Program
- 8.85Kg including carry bag
Specifications:
| Model Number | KT70743 |
|---|---|
| Maximum Power (Pmax) | 300Wp |
| Maximum Power Voltage (Vmp) | 18.8V |
| Maximum Power Current (Imp) | 15.98A |
| Rated Voltage | 12V |
| Open Circuit Voltage (Voc) | 22.15V |
| Short Circuit Current (Isc) | 16.42A |
| Operating Temperature | -40°C to + 85°C |
| Product Application | Class A |
| Test Conditions | AM 1.5, 25°C, 1000W/m² |
| Product Weight | 8.85Kg |
