Description

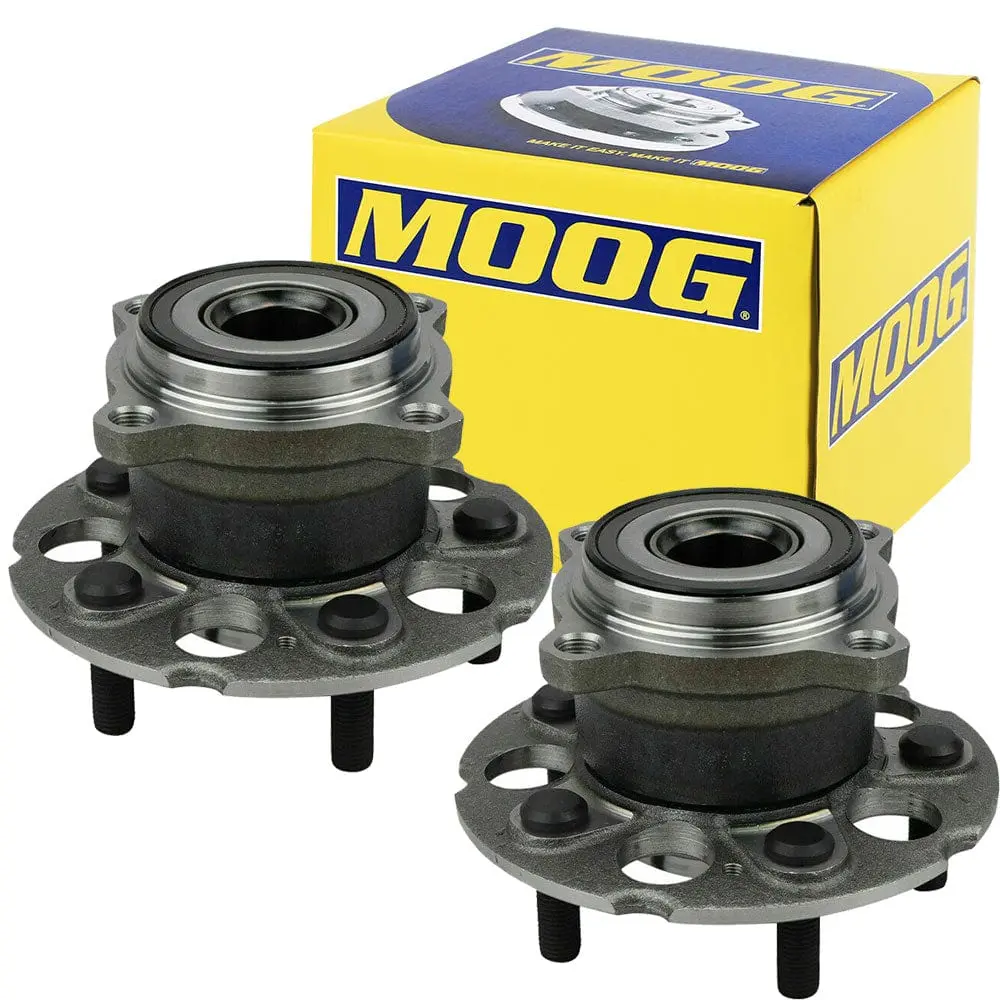

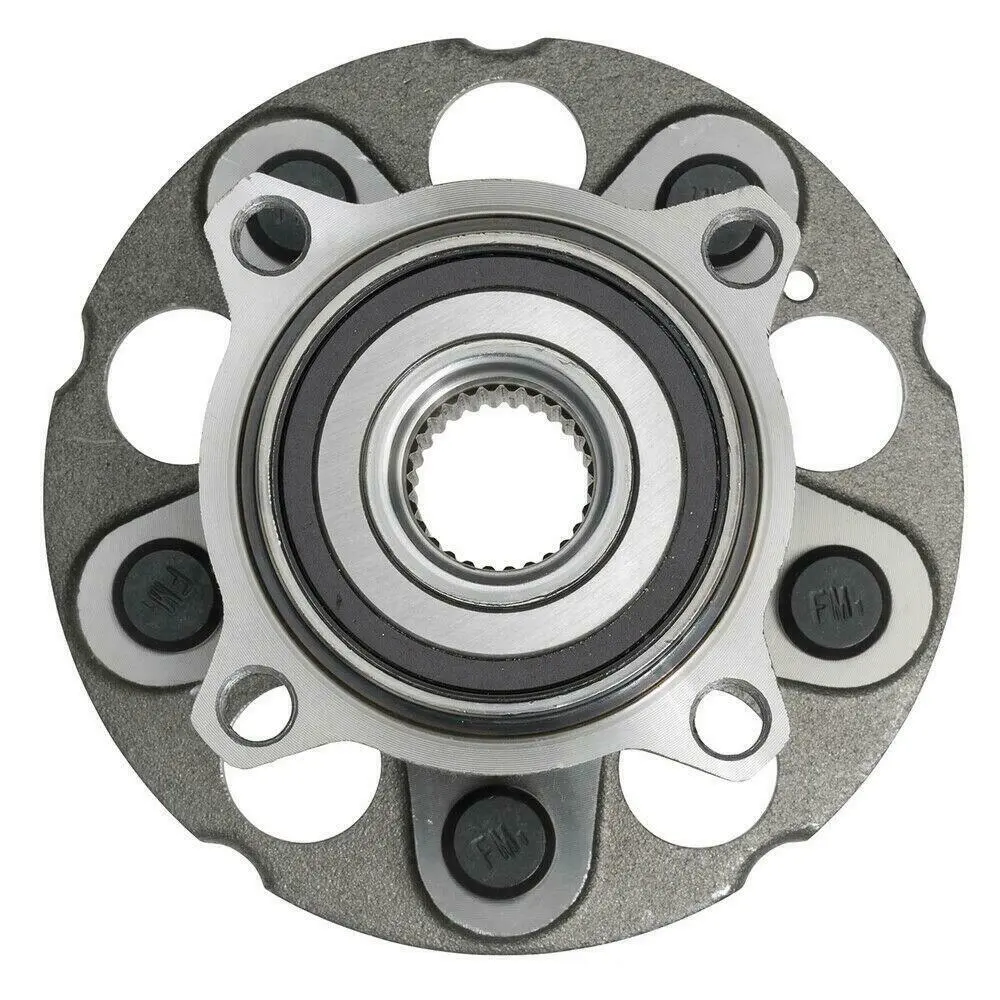

Moog 512345 Rear Wheel Bearing Hub Assembly
Premium rear wheel bearing hub assembly designed for Acura RDX AWD and Honda CR-V 4WD applications. Built for precise fit, quiet performance and long-lasting durability.
10-Year Warranty ?|? Next-Day Ship ?|? 3®C7 Business Days Delivery
Specifications
| Position | Rear |
| Anti-Lock Brake Sensor | Yes (Integrated) |
| Bolt Circle Diameter (in) | 4.500 |
| Bolt Circle Diameter (mm) | 114.300 |
| Brake Pilot Diameter (mm) | 64.100 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter (mm) | 151.700 |
| Flange Offset (mm) | 61.500 |
| Flange Shape | Modified |
| Hub Pilot Diameter (mm) | 76.000 |
| Spline Quantity | 28 |
| Wheel Pilot Diameter (mm) | 64.000 |
| Wheel Stud Quantity | 5 |
Vehicle Fitment (Year by Year)
| Year | Make | Model | Position / Drivetrain |
|---|---|---|---|
| 2007 | Acura | RDX | Rear ®C AWD |
| 2008 | Acura | RDX | Rear ®C AWD |
| 2009 | Acura | RDX | Rear ®C AWD |
| 2010 | Acura | RDX | Rear ®C AWD |
| 2011 | Acura | RDX | Rear ®C AWD |
| 2012 | Acura | RDX | Rear ®C AWD |
| 2013 | Acura | RDX | Rear ®C AWD |
| 2014 | Acura | RDX | Rear ®C AWD |
| 2015 | Acura | RDX | Rear ®C AWD |
| 2016 | Acura | RDX | Rear ®C AWD |
| 2017 | Acura | RDX | Rear ®C AWD |
| 2018 | Acura | RDX | Rear ®C AWD |
| 2007 | Honda | CR-V | Rear ®C 4WD |
| 2008 | Honda | CR-V | Rear ®C 4WD |
| 2009 | Honda | CR-V | Rear ®C 4WD |
| 2010 | Honda | CR-V | Rear ®C 4WD |
| 2011 | Honda | CR-V | Rear ®C 4WD |
Installation Notes
- Fits specified AWD / 4WD rear applications only
- Verify year, make, model, drivetrain and position before purchase
- Professional installation recommended
- Torque all fasteners to factory specifications and road-test after installation
Customer Support
Not sure about fitment? Contact us with your VIN for quick confirmation before ordering.
