Description

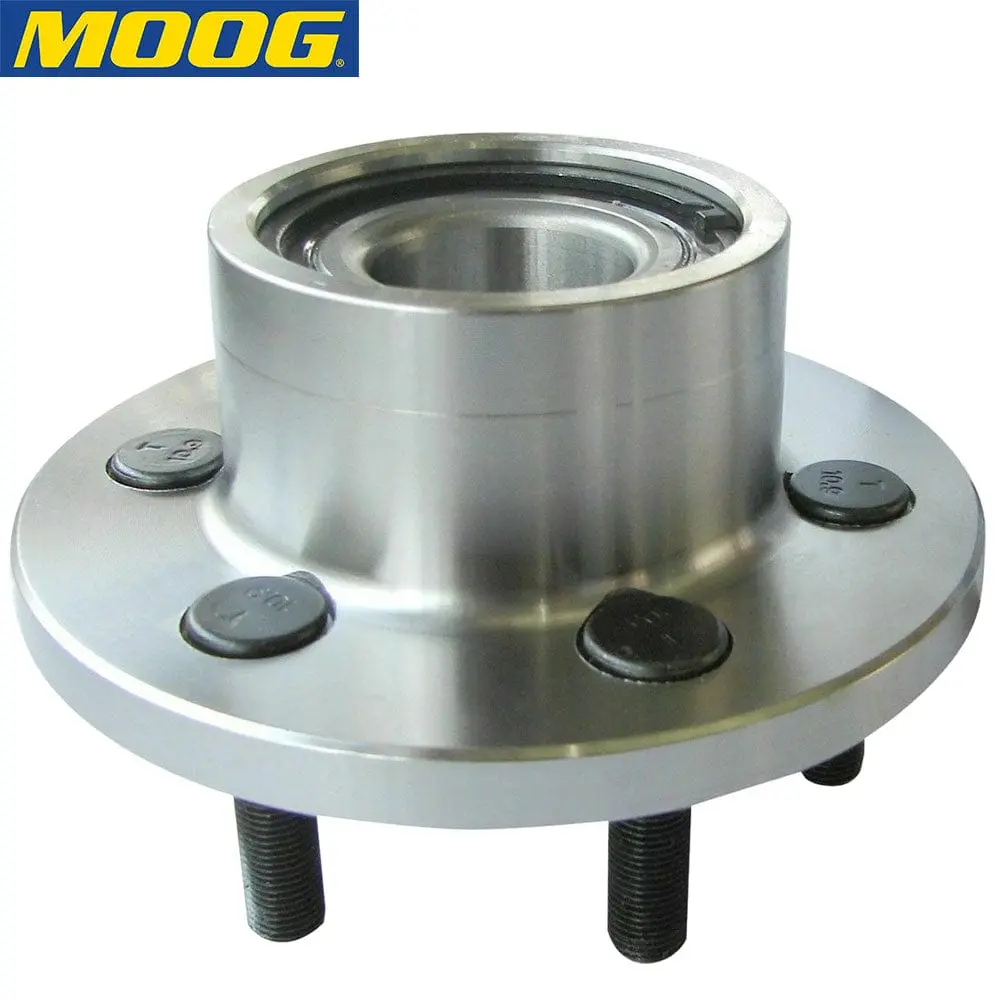

Moog 515032 Front Wheel Bearing Hub Assembly
OE-style front hub & bearing for precise fit and long service life. Built to handle 2-wheel ABS systems on 2WD applications.
Includes
- 1 × Front Wheel Bearing & Hub Assembly — Moog 515032
- Pre-installed wheel studs (6) — 1/2-20 thread
Specifications
- ABS Sensor Included: 2-Wheel ABS
- Wiring Harness Included: No
- Driven or Non-Driven: Non-Driven (Front 2WD)
- Mounting Bolts to Knuckle: 6
- Lug Bolts / Studs: 6, thread size 1/2-20
- Bearing Type: Tapered
- Total Hub Diameter: 6.299 in (160 mm)
- Hub Centerbore Diameter: 4.50 in (114.3 mm)
- Total Hub Height: 3.637 in (92.4 mm)
- Flange Diameter: 6.299 in (160 mm) — Circle
- Flange Offset: 2.270 in (57.683 mm)
- Flange Bolt Size (length): 1.618 in (41.1 mm)
- Flange Bolt Thread Size: 1/2-20 in
- Hub Pilot Diameter: 2.885 in (73.3 mm)
- Outer Ring Width: 2.98 in
- Inner Ring Width: 1.54 in
- Material: Steel
Vehicle Fitment
| MAKE | MODEL | YEAR RANGE | SPECIFIC DETAILS |
|---|---|---|---|
| DODGE | Dakota | 1997 – 2004 | 2WD |
| DODGE | Dakota R/T | 1997 – 2004 | 2WD |
| DODGE | Durango | 1999 – 2003 | 2WD |
Install Notes
Front position; fits driver (LH) or passenger (RH) side. Verify 2WD and 6-lug configuration before purchase.Fast Shipping
Orders ship next business day; typical U.S. delivery in 3–7 business days.
