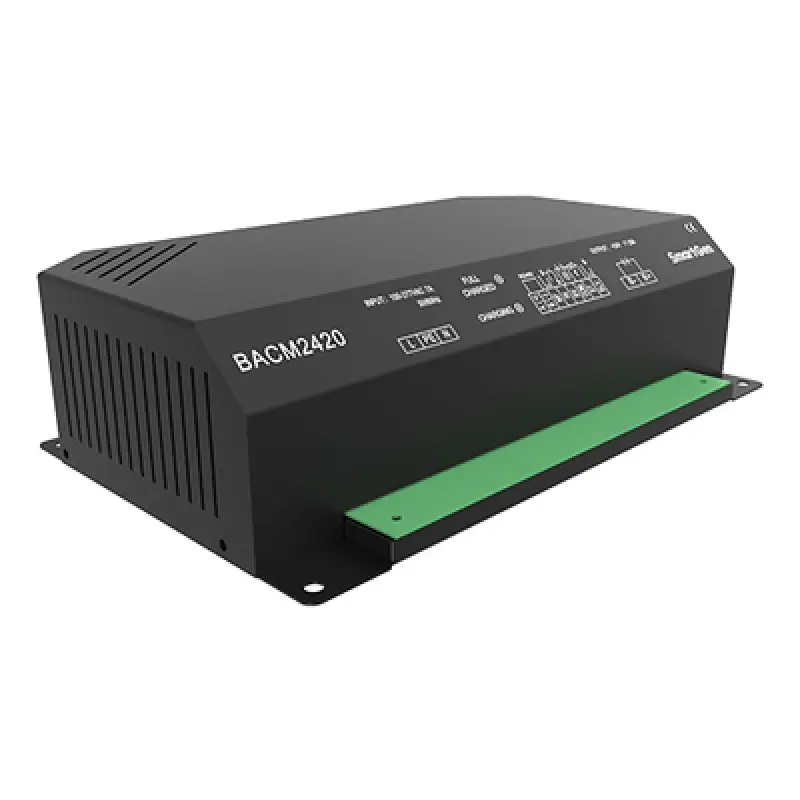

Smartgen BACM2420 Dual-Voltage Battery Charger – 12V and 24V Compatible

Description

SmartGen BACM2420 Battery Charger 12V 24V
CHARACTERISTICS:

1. Switch power supply structure, wide input AC voltage range, small size, lightweight, high-efficiency rate;
2. Users can select an automatic two-stage charging process or automatic three-stage charging process as needed. Both the two charging process is carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
3. Built-in PFC circuit can calibrate the power factor above 0.99;
4. Battery voltage detection ports can detect the battery voltage in real-time.
5. Battery low voltage output port; it will output low level immediately after the battery voltage has fallen below the set value for preset delay.
6. Temperature sensor port allows for monitoring the battery temperature in real-time and temperature compensation function which can prevent the battery temperature is too high effectively.
7. Mains failure port; It will output a low level when the AC input is interrupted.
8. Standard RS485 communication port.
9. BACM2410 charger is suitable for 24V battery, or suitable for 12V battery after changing the configuration information；Rated current: 20A.
10. LED display: Full charged indication (Green light) and charging indication (Red light).

Free Shipping!
Application:
SmartGen
Interchange part number:
BACM2420
Description:
Battery Charger
Condition:New,Original
PLEASE NOTE: Genuine/Original parts do not provide return or exchange service.

Description:
Power Supply：AC(100～277)V
Case Dimensions：265*156*68(mm)
Panel Cutout：239*142(mm)
Operating Temp. ：(-30～+55)℃
