Description
75-1000FHX Marine Diesel Generator Water Separator Fuel
Free Shipping
Application：
Racor Powergen, agricultural equipment, construction vehicles, light, medium and heavy duty trucks and other diesel powered equipment.
Interchange part number:
75-1000FHX 751000FHX10 751000FHX30
Description:
Marine Diesel Generator Water Separator Fuel Filter
Condition: New, replacement
Pls note: Not manufactured by Racor Parker.
Racor 751000FHX Series

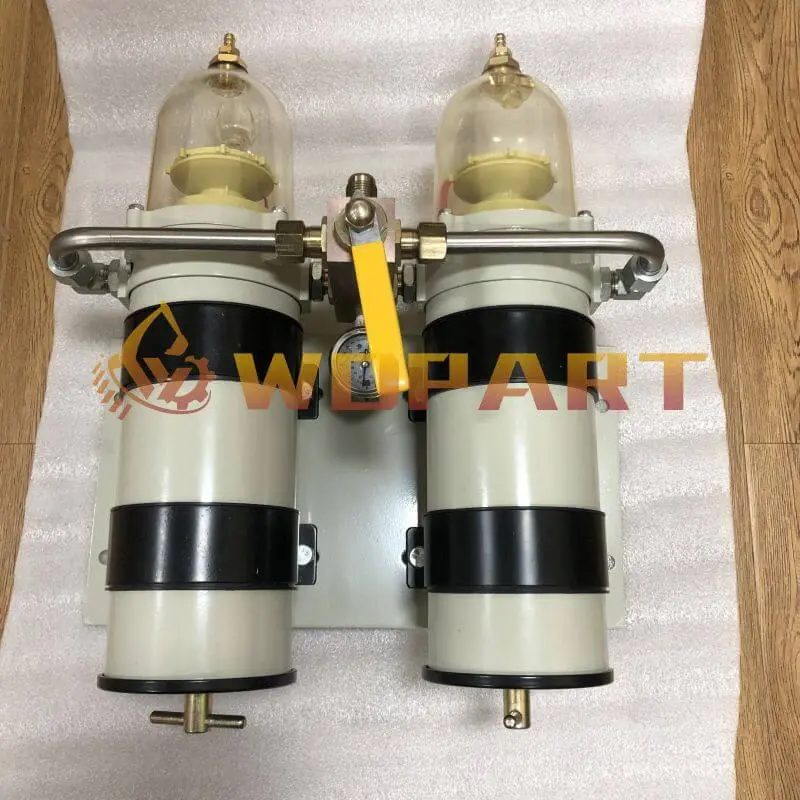

The Racor 751000FHX Series Turbine Assembly has the capacity of filtering 360 gallons per hour (681 LPH). The port size is 7/8″ with a clear bowl on each unit. There is one main shutoff valve on this assembly, placed between each turbine.This turbine assembly comes in 2-micron, 10-micron, and 30-micron ratings.
| UOM: | EA | Height: | 22.0 Inch (55.9 cm) |
| Filter rating: | 30 micron | Depth: | 11.0 Inch (27.9 cm) |
| Bowl Type: | Clear plastic bowl w ss shield | Clean Pressure Drop: | 3.7 psi (0.26 bar) |
| Maximum Flow: | 360 gph (1363 lph) | Heater: | No heater |
| Replacement Element: | 2020 Series | Overhead Clearance: | 10.0 Inch (25.4 cm |
| Weight: | 30.lbs (13.6 kg) | Pressure Rating: | 15 psi (1.03 bar) |
| Width: | 18.0 Inch (45.7 cm) | Operating Temperature: | -40 F to 255 F (-40 C to 124 C) |
| Valve Type: | 6 way valve | Maximum Fuel Temperature: | 190 F (88 C) |
| Series: | 1000 | ||
| Configuration Type: | Fuel Filter/Water Separator | ||
| Inch/Metric: | Inch | ||
| Port Size: | 7/8”-14 SAE |
