Description

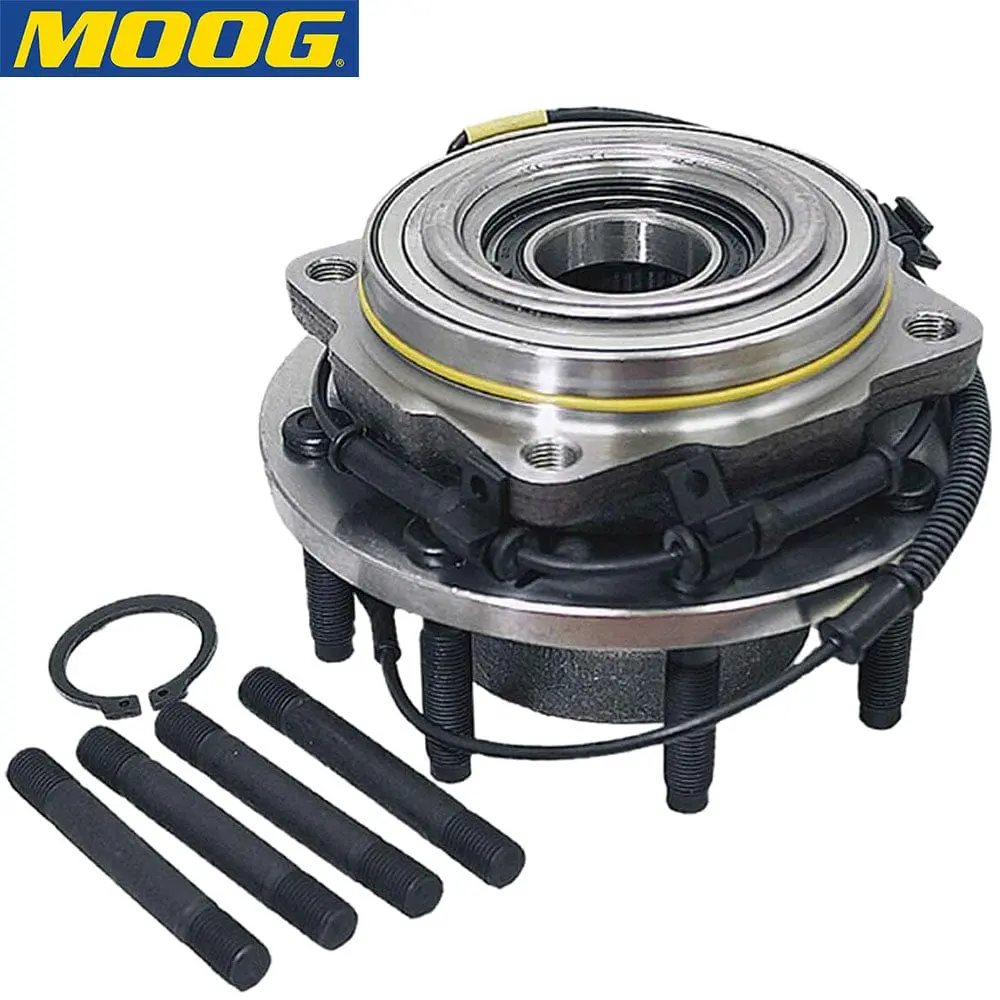

Moog 515081 Front Wheel Bearing Hub Assembly (4WD)
Direct-fit front hub & bearing unit engineered for Ford Super Duty 4WD trucks. Sealed design for quiet operation, long life, and proper ABS performance.
Fits 4WD models only | ABS sensor compatible | 8 wheel studs
Specifications
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter (in) | 6.693 |
| Bolt Circle Diameter (mm) | 170.000 |
| Brake Pilot Diameter (mm) | 129.100 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter (mm) | 203.000 |
| Flange Offset (mm) | 46.500 |
| Flange Shape | Square |
| Hub Pilot Diameter (mm) | 140.000 |
| Spline Quantity | 32 |
| Wheel Pilot Diameter (mm) | 125.000 |
| Wheel Stud Quantity | 8 |
| Position | Front (Left or Right) |
Replaces Dealer Part Numbers
5C34-2B513-BA, 5C342B513BA, 5C3Z-1104-BAA, 5C3Z1104BAA, 6C34-2B513-BA, 6C342B513BA, 6C3Z-1104-BA, 6C3Z1104BA, 7C34-2B513-B, 7C34-2B513-BB, 7C34-2B513-BC, 7C342B513B, 7C342B513BB, 7C342B513BC, 7C3Z-1104-B, 7C3Z1104B, AC3Z-1104-FFC, AC3Z1104FFC.
Vehicle Fitment
Fits 4WD models only
| Make | Model | Year(s) | Drive | Position | Notes |
| Ford | F-250 Super Duty | 2005–2010 | 4WD | Front (L/R) | 8-stud hub |
| Ford | F-350 Super Duty | 2005–2010 | 4WD | Front (L/R) | 8-stud hub |
| Ford | F-450 Super Duty | 2010 | 4WD | Front (L/R) | Per listed spec |
| Ford | F-550 Super Duty | 2010 | 4WD | Front (L/R) | Per listed spec |
What’s in the Box
- 1 × Front Wheel Bearing Hub Assembly (515081)
Installation Notes
- Confirm 4WD and 8-stud configuration before ordering.
- Professional installation recommended; torque to factory specs.
- Road-test and recheck torque after installation.
10-Year Warranty | Ships Next Business Day | Delivery 3–7 Business Days
