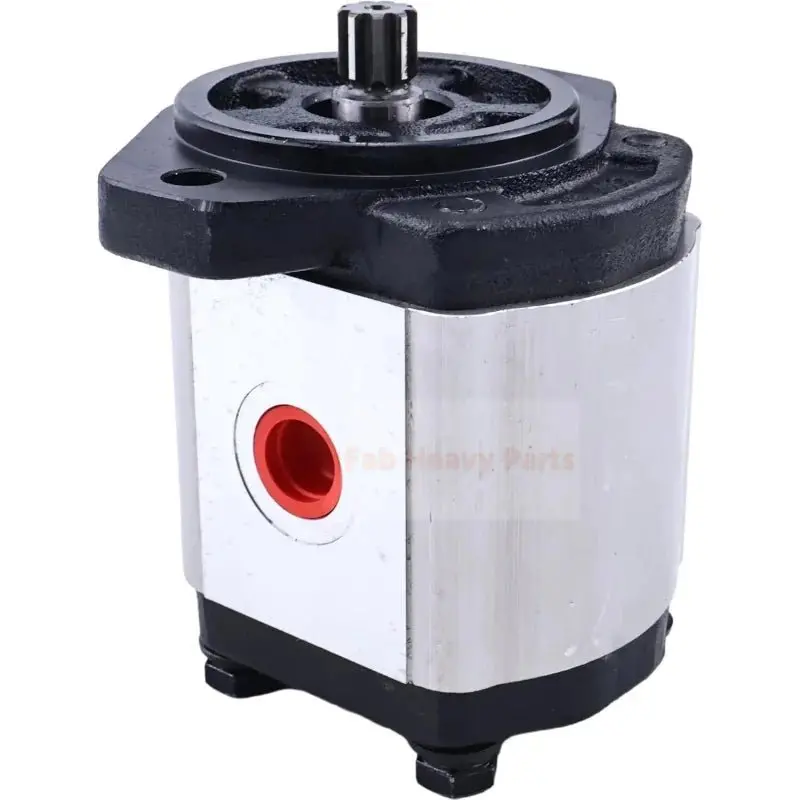

CI09S-A02-122L Hydraulic Gear Pump – 9-Tooth Spline Shaft, SAE A2 Mounting, 3–15 GPM Flow, SAE 10 Inlet / SAE 12 Outlet, 3600 PSI Max Pressure

Description

Hydraulic Gear Pump CI09S-A02-122L Fits for 9-Tooth Spline Inches SAE A-2 Bolts 3-15 GPM Outlet Port SAE 10 Inlet Port SAE 12 3600 PSI

Part number: CI09S-A02-122L

Application: Fits for 9-Tooth Spline Inches SAE A-2 Bolts 3-15 GPM Outlet Port SAE 10 Inlet Port SAE 12 3600 PSI

Condition: new, aftermarket

Specifications:

Displacement: 1.22 Cubic Inches; Shaft Type: 9-tooth Spline Inches
Mounting Flange: SAE A-2 Bolts
Outlet Port: SAE 10; Inlet Port: SAE 12
MAX Working Pressure: 3000 PSI; MAX Intermittent Pressure: 3350 PSI; Peak Pressure: 3600 PSI
Direction: Counter-Clockwise (Left)
MAX Speed: 3000 RPM; MIN Speed: 500 RPM
MAX Torque: 110 N*m
