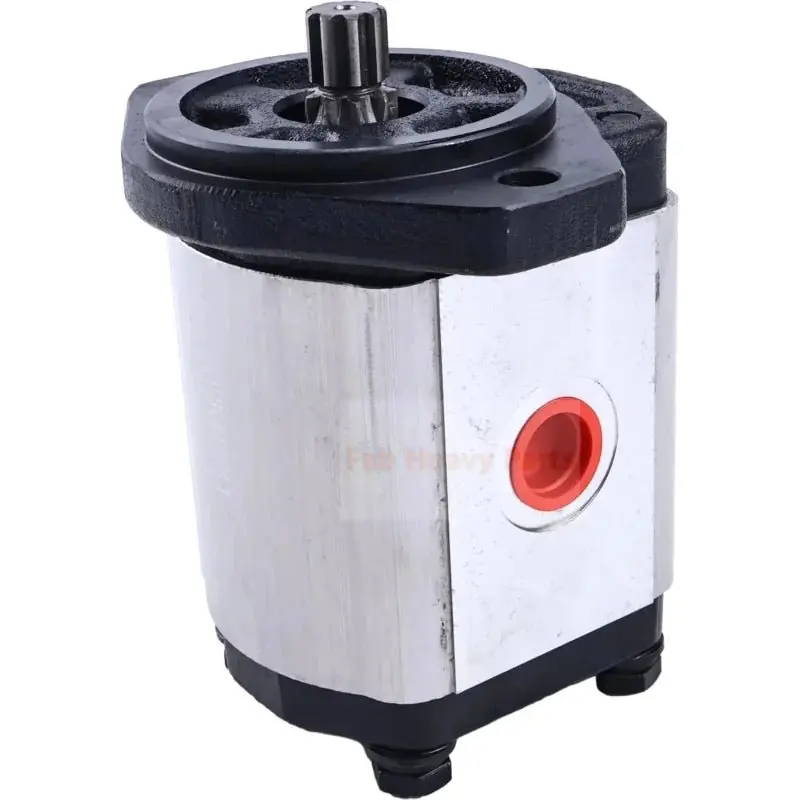

CI09S-A02-170L Hydraulic Gear Pump – 9-Tooth Spline Shaft, SAE A2 Mounting, 4–18 GPM Flow, SAE #10 Inlet / #12 Outlet, 2750 PSI Max Pressure

Description

Hydraulic Gear Pump CI09S-A02-170L Fits for 9-Tooth Spline Inches SAE A-2 Bolts 4-18 GPM Outlet Port SAE 10 Inlet Port SAE 12 2750 PSI

Part number: CI09S-A02-170L

Application: Fits for 9-Tooth Spline Inches SAE A-2 Bolts 4-18 GPM Outlet Port SAE 10 Inlet Port SAE 12 2750 PSI

Condition: new, aftermarket

Specifications:

Displacement: 1.70 Cubic Inches
Shaft Type: 9-tooth Spline Inches
Mounting Flange: SAE A-2 Bolts
Outlet Port: SAE 10; Inlet Port: SAE 12
MAX Working Pressure: 2100 PSI; MAX Intermittent Pressure: 2500 PSI; Peak Pressure: 2750 PSI
Direction: Counter-Clockwise (Left)
MAX Speed: 2500 RPM; MIN Speed: 500 RPM
MAX Torque: 110 N*m
