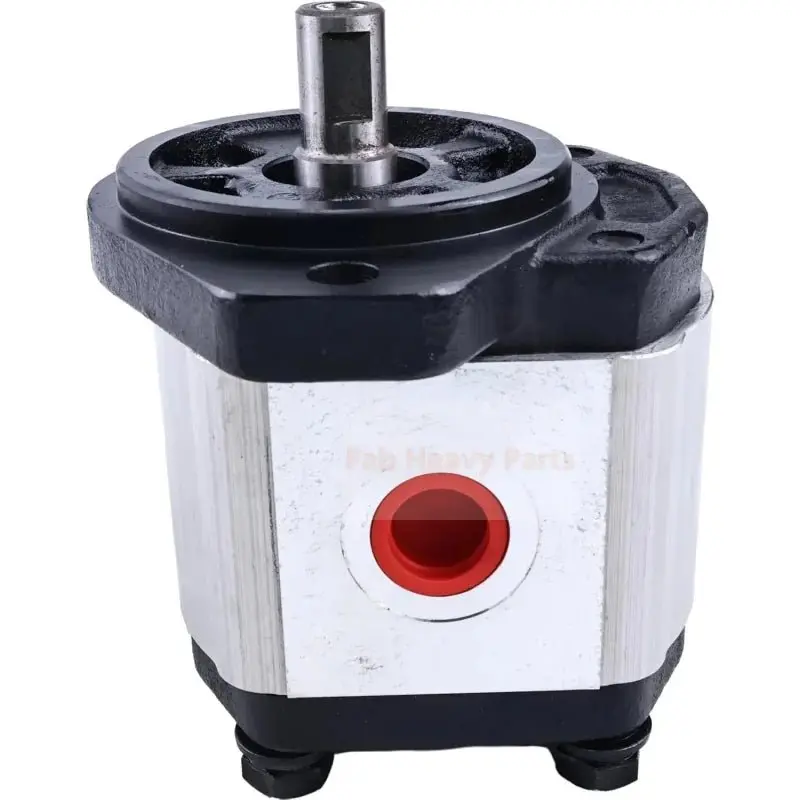

CI58K-A02-069L Hydraulic Gear Pump – 5/8″ Keyed Spline, SAE A2 Mount, 2–10 GPM Adjustable Flow, SAE 10 Inlet / SAE 12 Outlet, 4350 PSI Maximum Pressure

Description

Hydraulic Gear Pump CI58K-A02-069L Fits for 5/8″ Keyed Spline Inches SAE A-2 Bolts 2-10 GPM Outlet Port SAE 10 Inlet Port SAE 12 4350 PSI

Part number: CI58K-A02-069L

Application: Fits for 5/8″ Keyed Spline Inches SAE A-2 Bolts 2-10 GPM Outlet Port SAE 10 Inlet Port SAE 12 4350 PSI

Condition: new, aftermarket

Specifications:

Displacement: 0.69 Cubic Inches; Shaft Type: 5/8 keyed Inches
Mounting Flange: SAE A-2 Bolts
Outlet Port: SAE 10; Inlet Port: SAE 12
MAX Working Pressure: 3600 PSI; MAX Intermittent Pressure: 4000 PSI; Peak Pressure: 4350 PSI
Direction: Counter-Clockwise (Left)
MAX Speed: 3500 RPM; MIN Speed: 600 RPM
MAX Torque: 70 N*m
